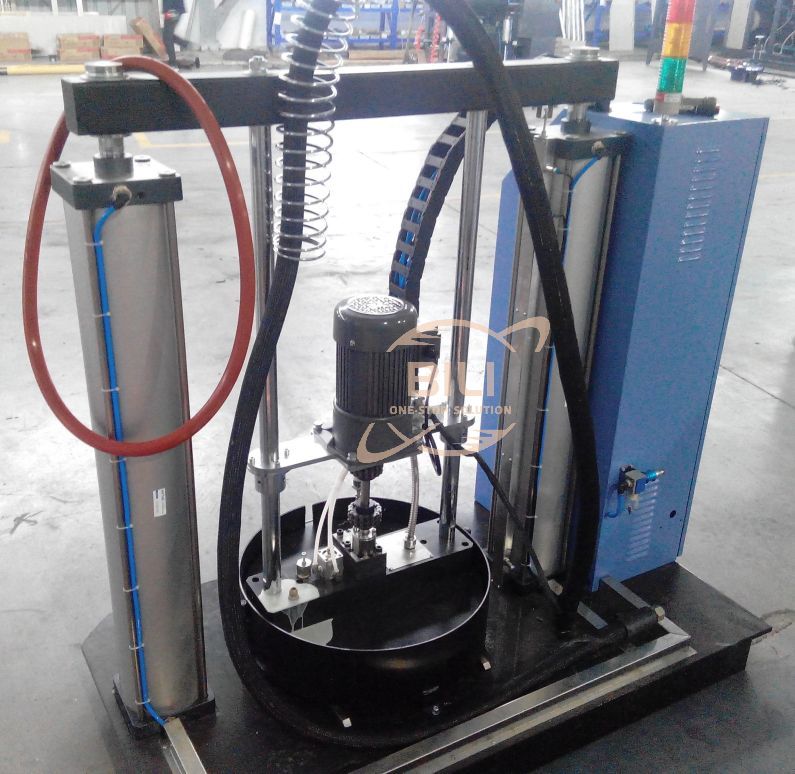

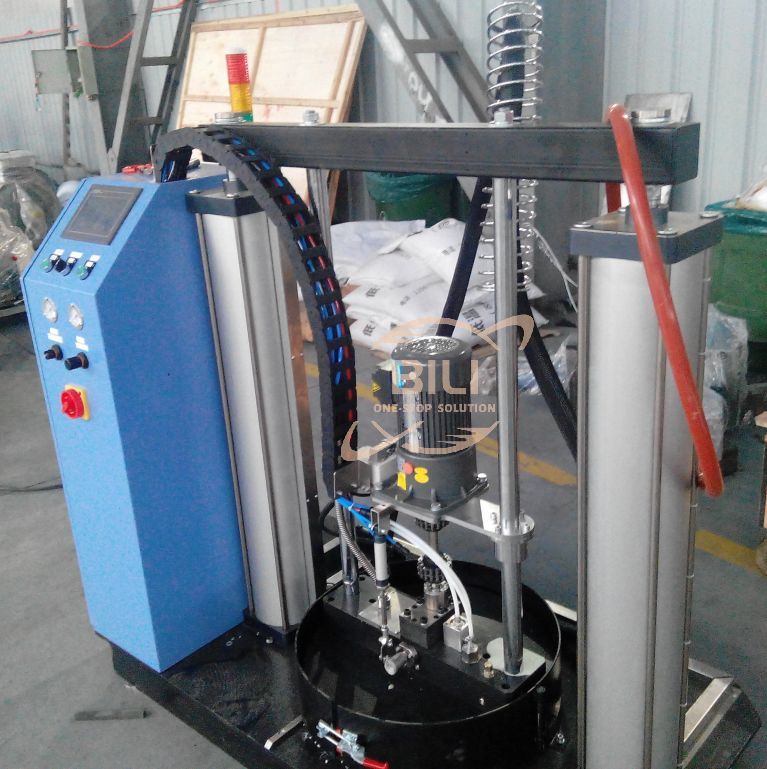

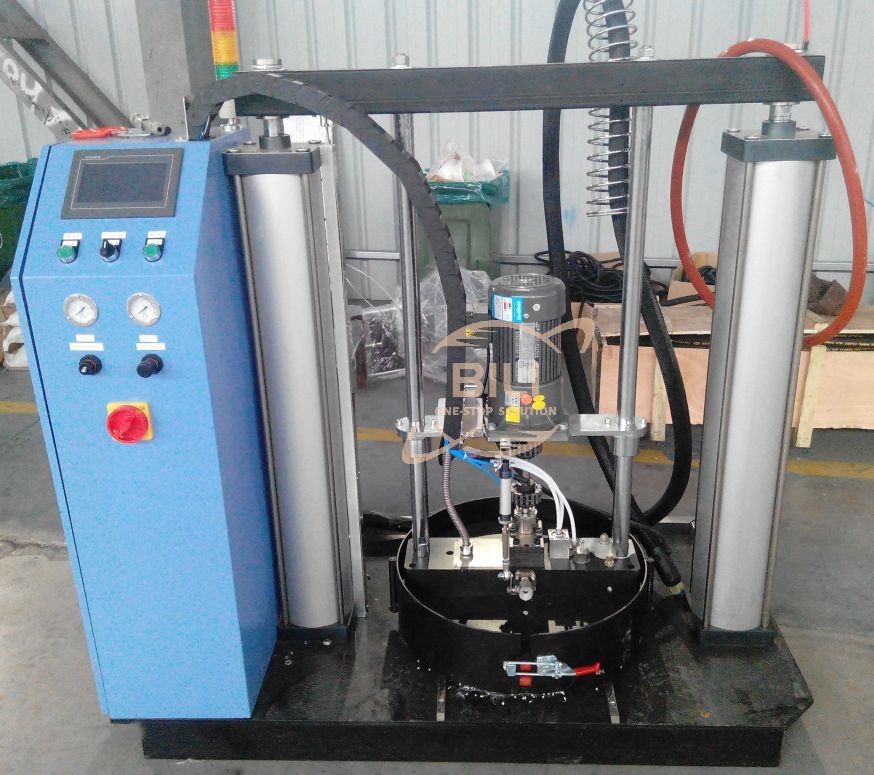

PUR Hot Melt Adhesive Drum Melter

PUR Hot Melt Adhesive Drum Melter

1. Capacity: 55 gallons (200L capacity),

2. Suitable diameter of glue tank:φ567mm or φ571mm( please confirm the size when placing order)

3. Melting capacity: 150kg/h

4. Maximum pump speed: standard 150.0 kg / h

5. Hose Connector: 1-way

6. Motor: AC variable speed motor, adjustable speed.

7. Pumping systems: High-precision metering gear pumps ,Uniform pressure, stable glue supply, Glue viscidity range can upto 100000CPS Maximum glue supply pressure: 80BAR

8. Pressure plate "Teflon" coating, effectively reducing carbides, facilitate cleaning

9. Adopts PLC and touch screen control, easy to operate

10. Temperature zones are controlled independently

11. Cryogenic pump stroke starter protection, over temperature protection

12. Glue pump over pressure protection

13. System self-diagnosis and auto-detection, security design

14. Hoop easily positioned, off barrel automatic inflatable, very convenient

15. Plate type pressure plate, less residual glue, quick heating speed, temperature uniformity

16. Lifting cylinder pressure adjustable

17. Hands pressure plate safety design

18. Glue position (empty) alarm

19. Electrical connection Push design, easy replacement and maintenance

20. Supply voltage: 380V, AC, three-phase 4-wire

21. Main power: 26KW

22. Touch screen: Weinview

 Specification：
